Inverted Bucket Steam Traps

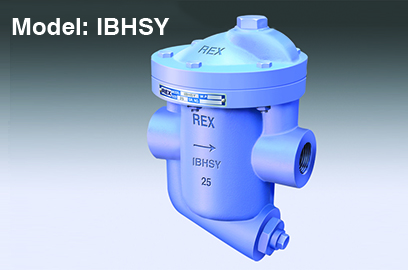

steamtramp-invertedbucket

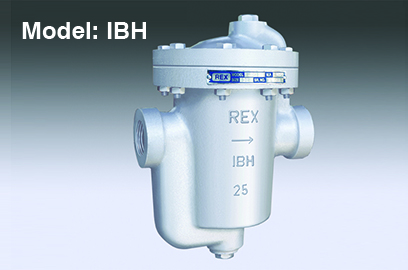

steamtramp-invertedbucket

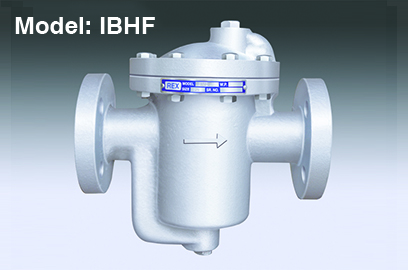

steamtramp-invertedbucket

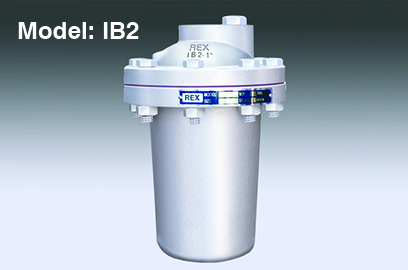

steamtramp-invertedbucket

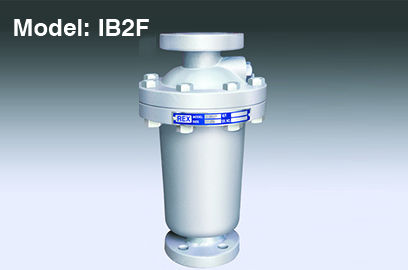

steamtramp-invertedbucket

Proper condensate removal is essential for efficient process plant operation. Rex offers a full range of established trap operating principles thermodynamic, ball float, and inverted bucket. Correctly chosen and fitted, rex traps can boost productivity, reduce spoilage, save man-hours, minimize steam consumption and cut fuel bills.

HOW IT WORKS

As condensate flows into the trap body, air and steam are trapped in the inverted bucket. This gives the bucket buoyancy and it rises with the condensate and quickly closes the valve. When entrapped steam condenses, bucket loses buoyancy, sinks and opens the discharge valve air. Which has accumulated in the top of the trap is immediately expelled by the pressure of the water which follows it to the trap outlet. When air or steam, again enter the inverted bucket, this cycle is repeated.

THE BENEFITS

  • Long, energy-efficient service life.
  • Resistance to wear.
  • Exceptional ability to handle dirt and scale.
  • Operation against back pressure of nearly 100%
  • Excellent purging action.
  • Continuous air venting at steam temperature.
